Product Introduction
Polyetherimide (PEI) is a transparent amber-colored amorphous thermoplastic specialty engineering plastic. Its English name is Polyetherimide, and its abbreviation is PEI. PEI's molecular structure contains both aromatic amine functional groups and ether structures. The aromatic ring and imide ring give it a rigid and anti-creep characteristic and high temperature stability, while the ether bond makes it have the flexibility required for thermoplastic molding. The density of PEI is 1.27 g/cm3, its glass transition temperature is 215℃, and its heat deflection temperature is 198-208℃.
Product Specifications
|
产品代码Code
|
颜色Color
|
表面纹理Texture
|
厚度(mm)Thickness
|
宽度(mm)Width
|
|

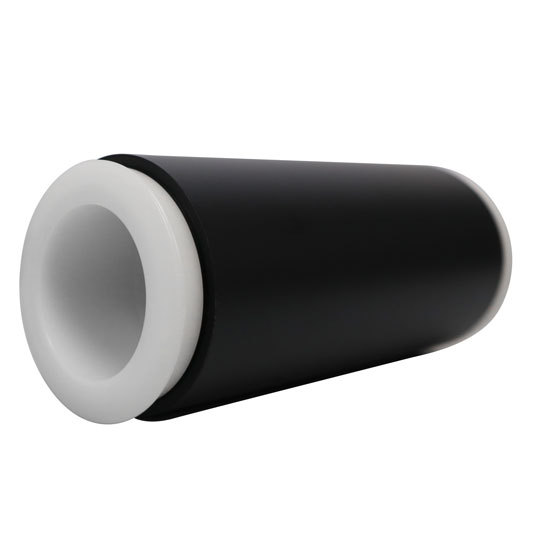

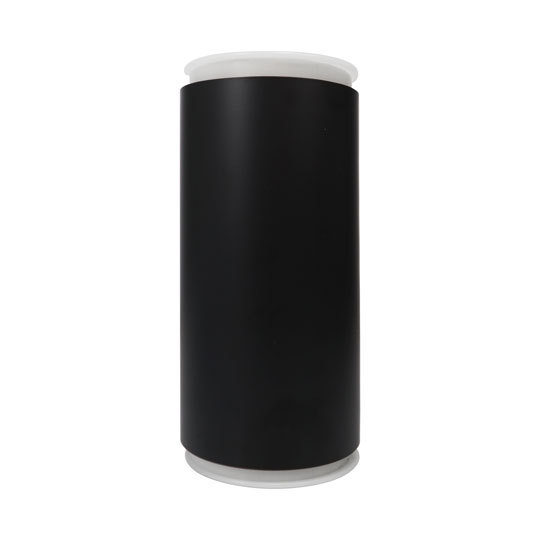

DFPEI
|
Black
|
Polished/matte
matte/velvet
|
0.025~0.5
|
<1060
|
Customers can customize according to their requirements within the above range.
Physical Properties
| |
特性PROPERTY
|
测试方法Tes Method
|
单位Units
|
测试值Value
|
|
物理性能 PHYSICAL
|
密度Density
|
ISO 1183
|
g/cm³
|
1.27
|
|
吸水率WaterAbsorption(23℃/24hrs)
|
ISO 62
|
%
|
0.25
|
|
机械性能
MECHANICAL
|
拉伸强度Tensile Strength
|
ISO 527-3
|
MD(MPa)
|
105
|
|
TD(MPa)
|
102
|
|
断裂伸长率Elongation Ultimate
|
ISO 527-3
|
MD%
|
65
|
|
TD%
|
34
|
|
拉伸弹性模量Tensile modulus
|
ISO 527-3
|
MD(MPa)
|
2796
|
|
TD(MPa)
|
2808
|
|
耐温性能 THERMAL
|
热收缩率Shrinkage(200℃/30min)
|
ISO 11501
|
MD%
|
0.2
|
|
TD%
|
0.1
|
|
玻璃转化温度Glass Transition(Tg)
|
ISO 11357
|
℃
|
217
|
|
相对温度指数RelativeTemperaturelndex
|
UL746B
|
|
170
|
|
电气性能
ELECTRICAL
|
表面电阻Surface Resistivity
|
IEC 60093
|
9
|
10¹5
|
|
体积电阻Volume Resistivity
|
IEC60093
|
|
10¹⁵
|
|
介电常数Dielectric Constant
|
IEC 60250
|
1MHz
|
3
|
|
介质损耗Loss Tangent
|
IEC 60250
|
|
0.006
|
|
光学性能OPTICAL
|
透光率Transmittance
|
ISO13468-2
|
%
|
85.6
|
Remarks: The above data is the test value of the laboratory, non-guaranteed value, for reference only.
Features
①Amorphous thermoplastic high temperature resistant film. (Can be used for a long time in the range of 160°C-180°C)
②Mechanical properties such as extremely high strength and modulus at elevated temperatures. Excellent dimensional stability. (low creep sensitivity, low and uniform coefficient of thermal expansion)
③Excellent insulating properties, stable dielectric constant (Dk) and low dissipation factor (Df) over a wide temperature and frequency range.Excellent flame retardancy and low smoke generation, in line with ABD, FAR and NBS requirements.
④Excellent chemical resistance to most oils, detergents and disinfectants. Can withstand a variety of disinfection methods.With visible light, infrared and microwave penetration.
Application Areas
The main application scenarios of PEI film: electronic and electrical industries with special requirements such as waterproof, dustproof and breathable, speaker diaphragm, high temperature supercapacitor, etc.
