Product Introduction

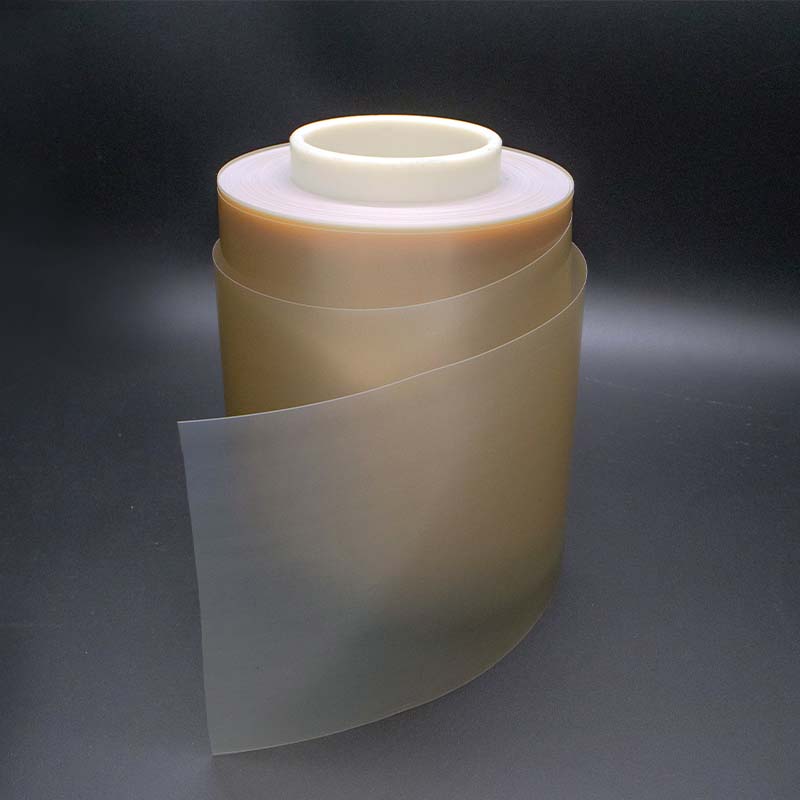

The PPO film has high temperature performance, good mechanical strength ，radiation, chemical resistance ，electrical insulation and ease of processing.
Product Specifications
| 产品名称 Name |
颜色 Color |
表面纹理 Texture |
厚度(mm)Thickness |
宽度(mm)Width |
| DFPPOR |
本色/黑色
Natural/Black |
光面/哑光 ， 哑光/中砂
Polished/matte matte/velvet |
0.075~ 1.0 |
≤ 1000mm |
Customers can customize according to their requirements within the above range.
Physical Properties
| |
特性 PROPERTY |
测试方法 Test Method |
单位 Units |
测试值 Value |
物理性能
PHYSICAL |
密度 Density |
ISO 1183 |
g/cm3 |
1.09 |
| 吸水率 Water Absorption （23℃/24hrs） |
ISO 62 |
% |
0.04 |
机械性能
MECHANICAL |
拉伸强度 Tensile Strength |
ISO 527-3 |
MD |
68 |
| TD |
53 |
| 断裂伸长率 Elongation Ultimate |
MD % |
60 |
| TD % |
93 |
| 拉伸弹性模量 Tensile modulus |
MD |
2144 |
| TD |
1963 |
耐温性能
THERMAL |
热收缩率 Shrinkage（120℃/30min） |
ISO 11501 |
MD % |
0.1 |
| TD % |
0.1 |
| 热变形温度 Temperature of deflection |
ISO75(0.45MPa) |
℃ |
144 |
电气性能
ELECTRICAL |
表面电阻 Surface Resistivity |
IEC 60093 |
Ω |
1016 |
| 体积电阻 Volume Resistivity |
Ω·cm |
1016 |
| 介电常数 Dielectric Constant |
IEC 60250 |
1MHz |
2.8 |
| 介质损耗 Loss Tangent |
1MHz |
0.001 |
阻燃性能
FLAMMABILITY |
阻燃等级 UL（0.075mm） |
UL94 |
Class |
VTM-0 |
| 阻燃等级 UL（0.43mm） |
UL94 |
Class |
V0 |
Remarks: The above data is the test value of the laboratory, non-guaranteed value, for reference only.
