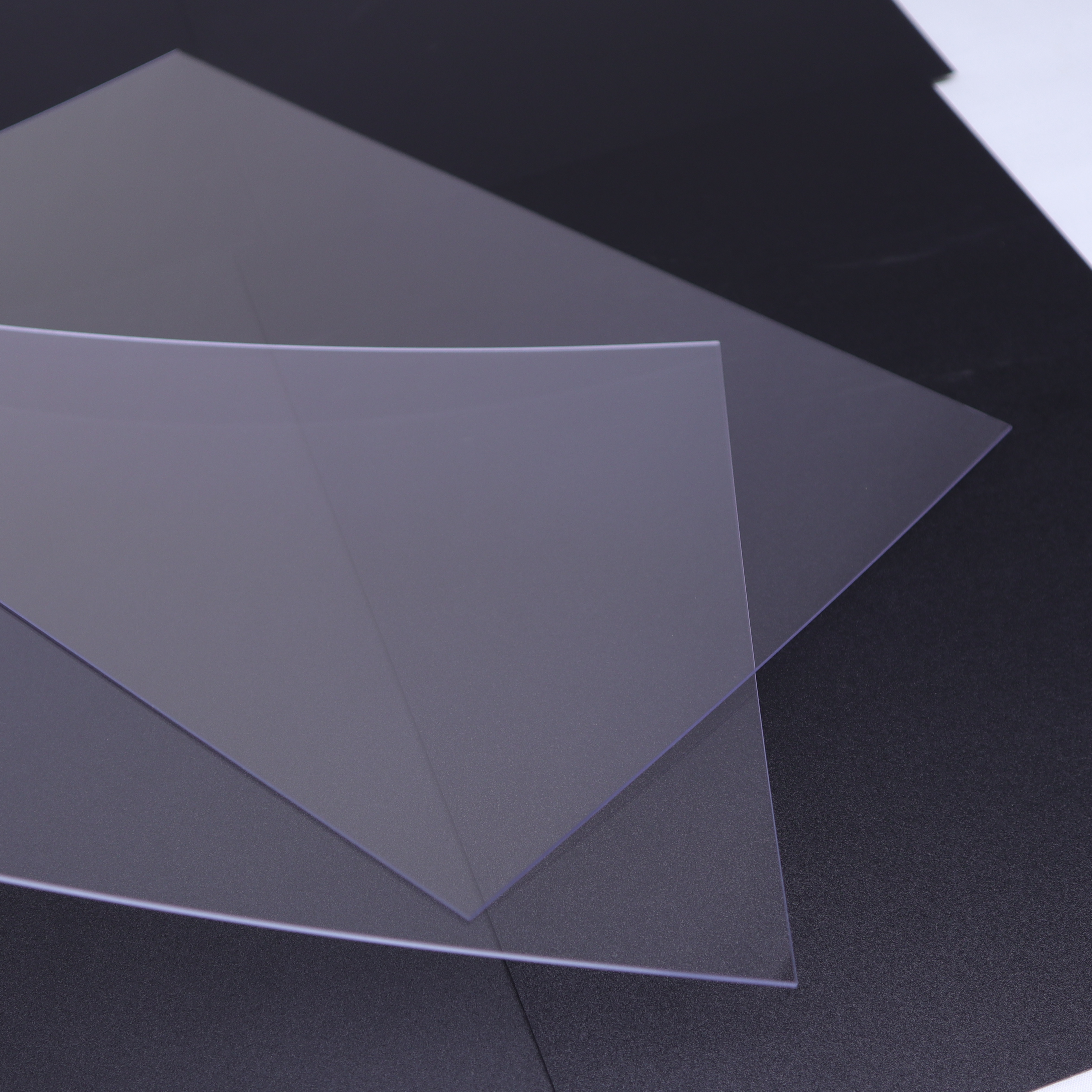

Product CategoriesThe product has three types: metallizing grade, hard-coating grade and optical grade.
Product FeaturesIt is super transparent and has good printing properties and excellent physical & mechanical properties. It also has thermal stability, insulation and flame retarding properties. It is an ideal harden coating and metallizing material.
Product ApplicationsThe product is widely used for viewing window, AV/OA, panels, electrical insulation, printing nameplates, digital photo frames, sport helmets and more.
Specification
|
Code
|
Color
|
Texture
|
（mm）Thickness
|
（mm）Width
|
|
DFPC11
|
Natural
|
Polished / Polished
|
0.100 ~ 3.500 ( 0.004” ~ 0.138” )
|
915 & 1220 ( 3’ ~ 4’ )
|
|
Gauge Variation
|
<0.25mm ±10%
≧0.25mm ±5%
|
Typical Property Values
|
Items
|
Test Methods
|
Units
|
Value
|
|
PHYSICAL
|
|
Specific Gravity
|
ASTM D792
|
g/cm³
|
1.2
|
|
Light Transmition
|
ASTM D1003
|
%
|
89～90
|
|
Water Absorption Equilibrium, 24 HRS
|
ASTM D570
|
%
|
0.35
|
|
MECHANICAL
|
|
Tensile Strength
|
ASTM D882
|
Mpa
|
≧60
|
|
Elongation Ultimate
|
ASTM D882
|
%
|
≧90
|
|
Pencil Hardness@750g
|
ASTM D3363
|
------
|
2B
|
|
THERMAL
|
|
Vicat Softening Temperature
|
ASTM D1525
|
℃
|
135
|
|
Strain Relief @135℃
|
ASTM D1204
|
%
|
≦1
|
|
ELECTRICAL
|
|
Dielectric Strength (@10mils)
|
ASTM D149
|
KV/mm
|
≧30
|
|
Volume Resistivity @25℃, 50%RH
|
ASTM D257
|
Ω-cm
|
>1x1017
|
|
Surface Resistivity @25℃, 50%RH
|
ASTM D257
|
Ω
|
>1x1015
|
|
FLAMMABILITY
|
|
UL Flamability
|
UL BULLETIN 94
|
|
|
|
@≧20mils （≧0.25mm）
|
|
UL 94
|
V-2
|
Notes: All the above data are acquired by standardized tests, which be used only for the references of the application of products.These data can not be regard as the assurance of physical properties in unstable application of products.
