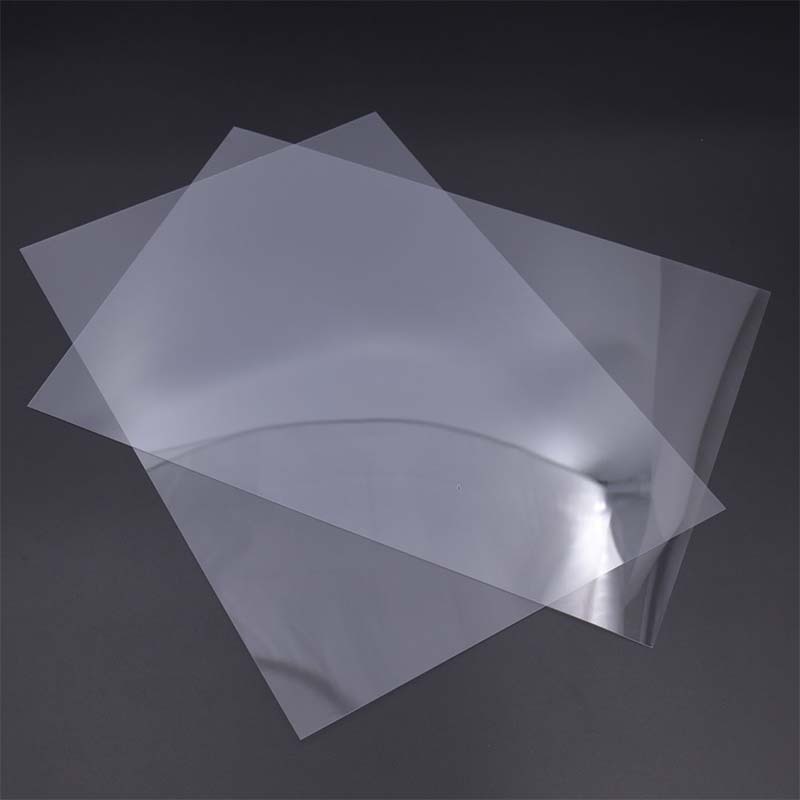

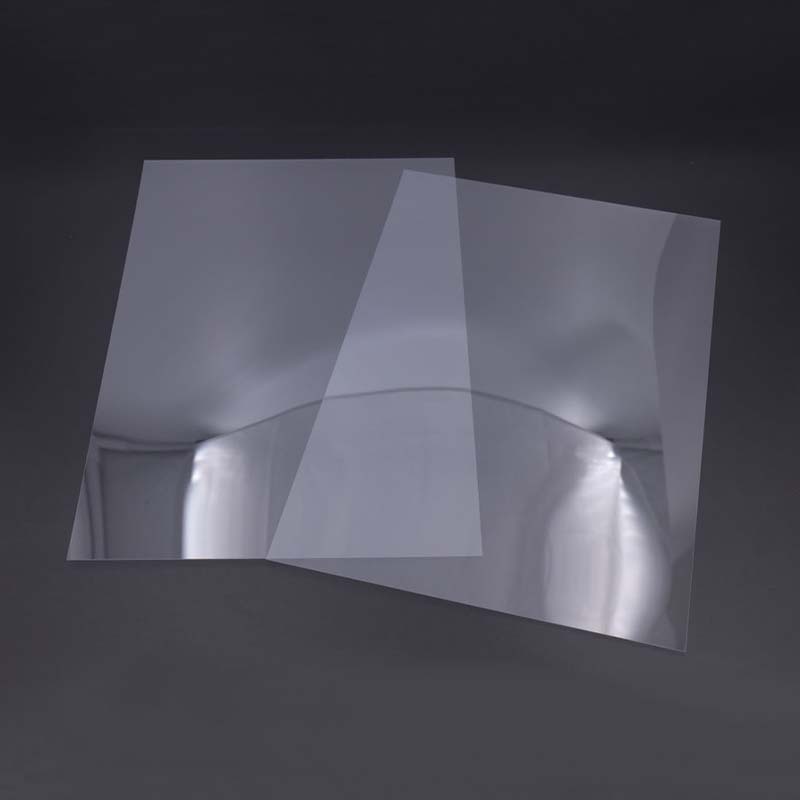

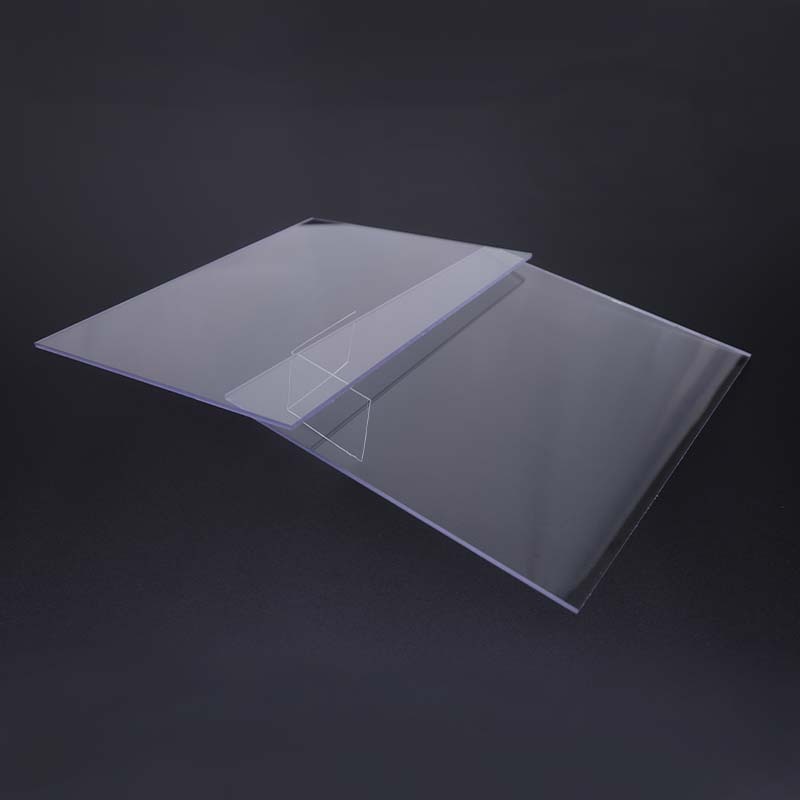

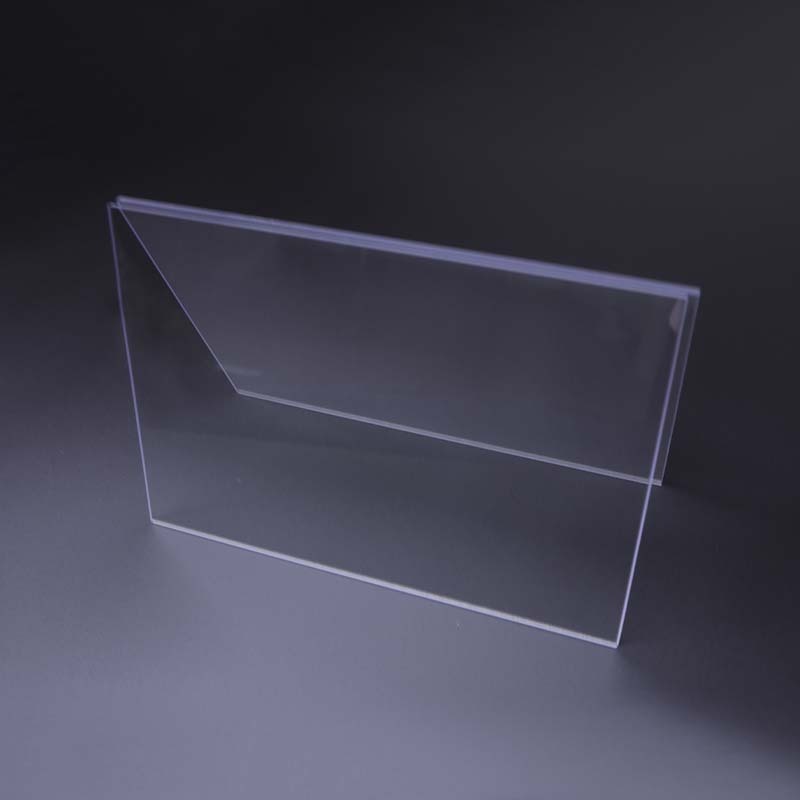

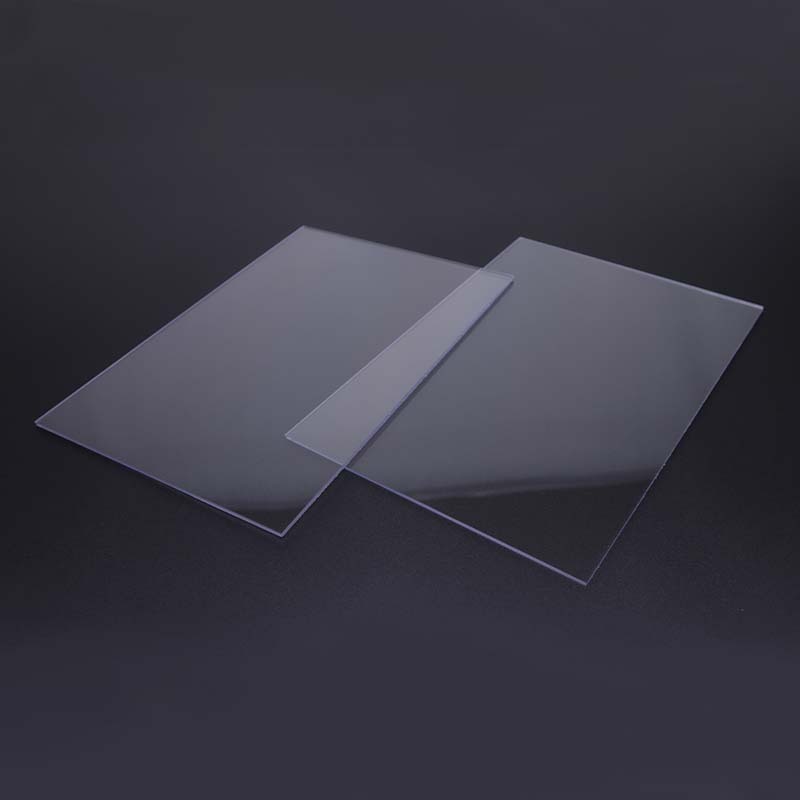

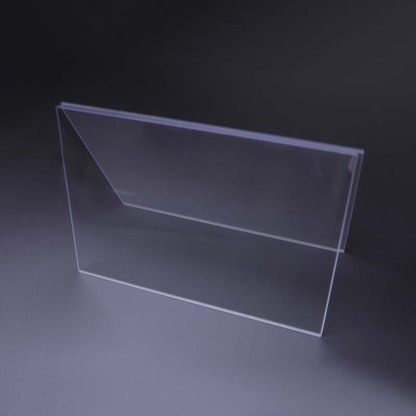

Product Features
It is super transparent and has good printing properties and excellent physical & mechanical properties. It also has thermal stability, insulation and flame retarding properties. It is an ideal harden coating and metallizing material.
Product Applications
The product is widely used for viewing window, AV/OA, panels, electrical insulation, printing nameplates, digital photo frames, sport helmets and more.
Product Specifications
|
产品代码Code
|
颜色Color
|
表面纹理Texture
|
厚度(mm)Thickness
|
宽度(mm)Width
|
|
DFPCG11
|
本色Natural
|
光面/光面
Polished/Polished
|
0.075～4.000
(0.003”~0.157”)
|
≤1350 (≤53”)
|
|
厚度公差
Gauge Variation
|
d<0.25mm
0.5<d<1.2mm
|
±10um
±25um
|
0.25≤d≤0.5mm±15um d≥1.2mm±35um
|
Customers can customize according to their requirements within the above range.
Physical Properties
|
特性PROPERTY
|
测试方法Tes Method
|
单位Units
|
测试值Value
|
|
物理性PHYSICAL
|
|
比重Specific Gravity
|
ASTM D792
|
g/cm³
|
1.2
|
|
透光率Light Transmition
|
ASTM D1003
|
%
|
≥89
|
|
平均吸水率Water Absorption Equilibrium,24HRS
|
ASTM D570
|
%
|
0.23
|
|
机 械 性 M E C H A N I CA L
|
|
拉伸强度Tensile Strength
|
ASTM D882
|
Mpa
|
≥60
|
|
极限延伸率Elongation Ultimate
|
ASTM D882
|
%
|
≥90
|
|
耐 温 性 T H E R M A L
|
|
维卡软化点Vicat Softening Temperature
|
ASTM D1525
|
℃
|
135
|
|
热收缩率Strain Relief @135℃
|
ASTM D1204
|
%
|
≤1
|
|
电气性ELECTRICAL
|
|
介电强度Dielectric Strength(@10mils)
|
ASTM D149
|
KV/mm
|
30
|
|
体积绝缘Volume Resistivity@25℃,50%RH
|
ASTM D257
|
Q-cm
|
>1×10¹6
|
|
表面绝缘Surface Resistivity@25℃,50%RH
|
ASTM D257
|
9
|
>1×10¹5
|
|
阻燃性FLAMMABILITY
|
|
UL防火等级UL Flammability@≥20 mils
|
UL94
|
-----
|
V-2
|
|
杂质点Foreign matter
|
|
粒径Diameter
|
≤0.1mm
|
0.1<d≤0.25mm
|
0.25<d≤0.5mm
|
≥0.5mm
|
|
数量Amount(in an area of 1m²)
|
≤40
|
≤11
|
≤3
|
Not allowed
|
Notes: All the above data are acquired by standardized tests, which be used only for the references of the application of products.These data can not be regard as the assurance of physical properties in unstable application of products.
