Product Introduction

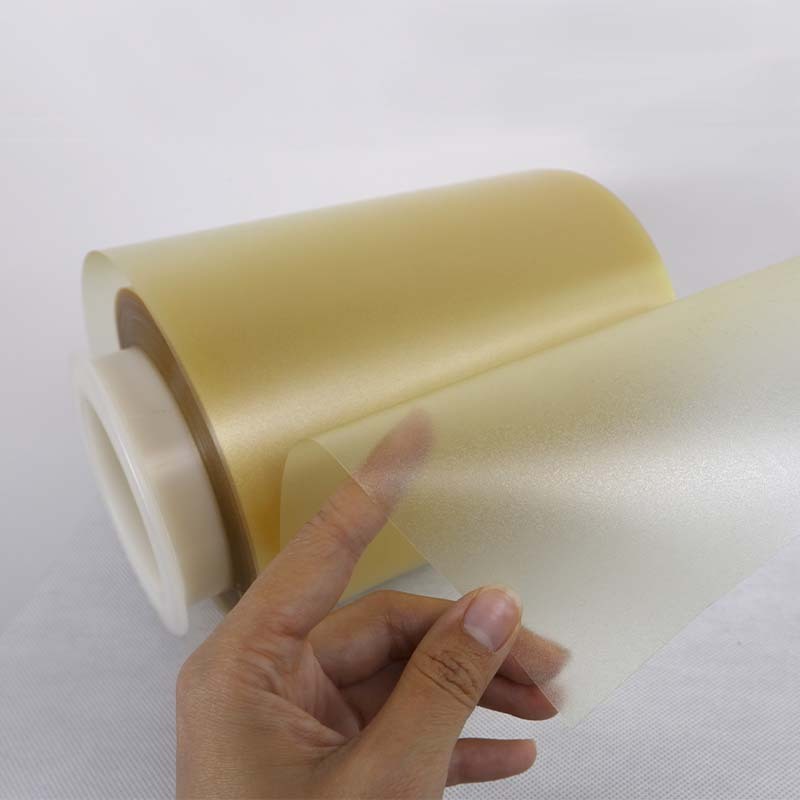

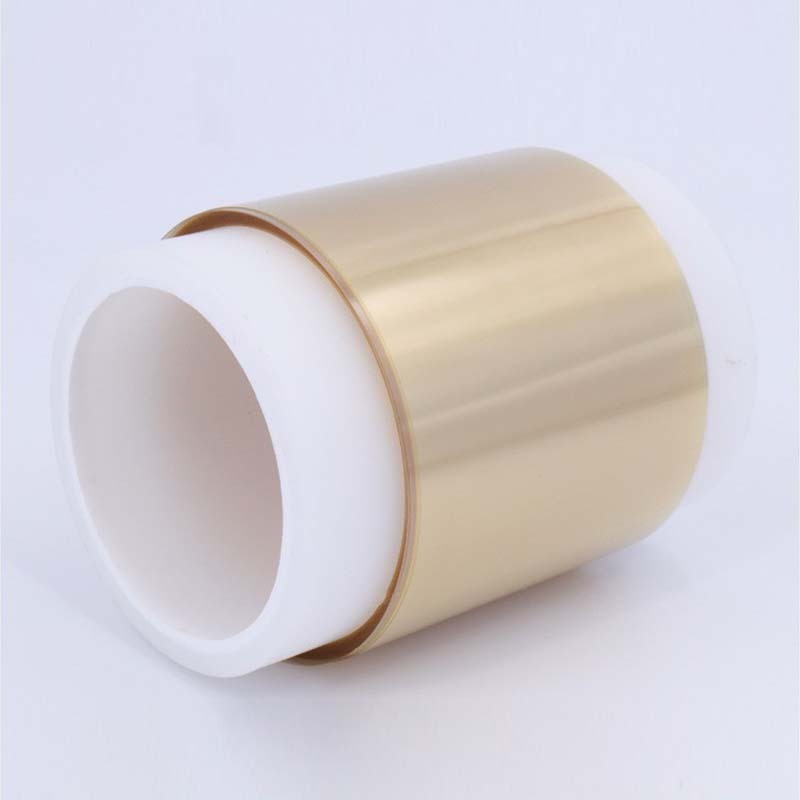

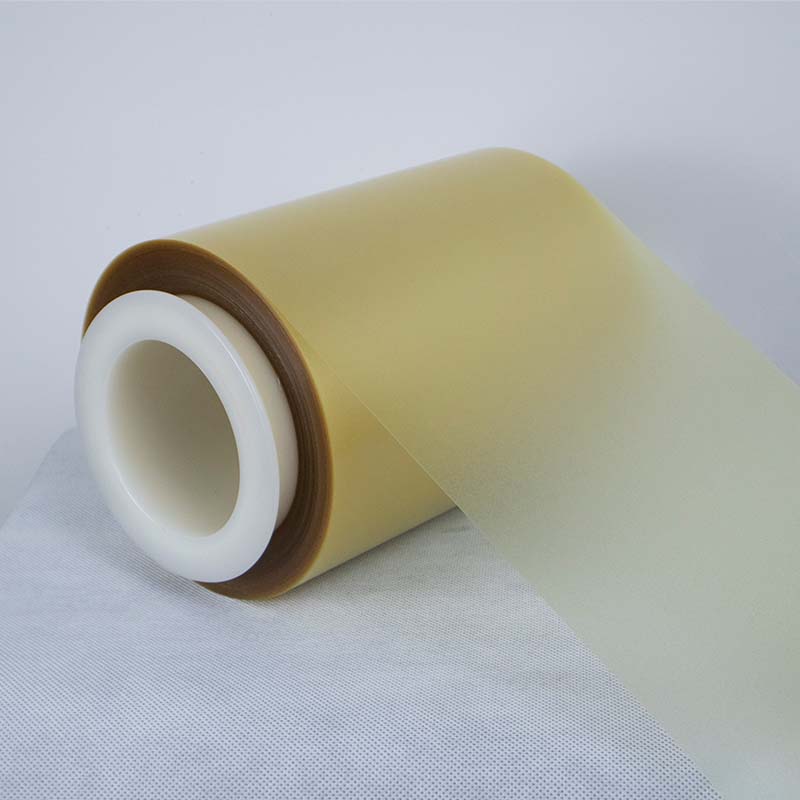

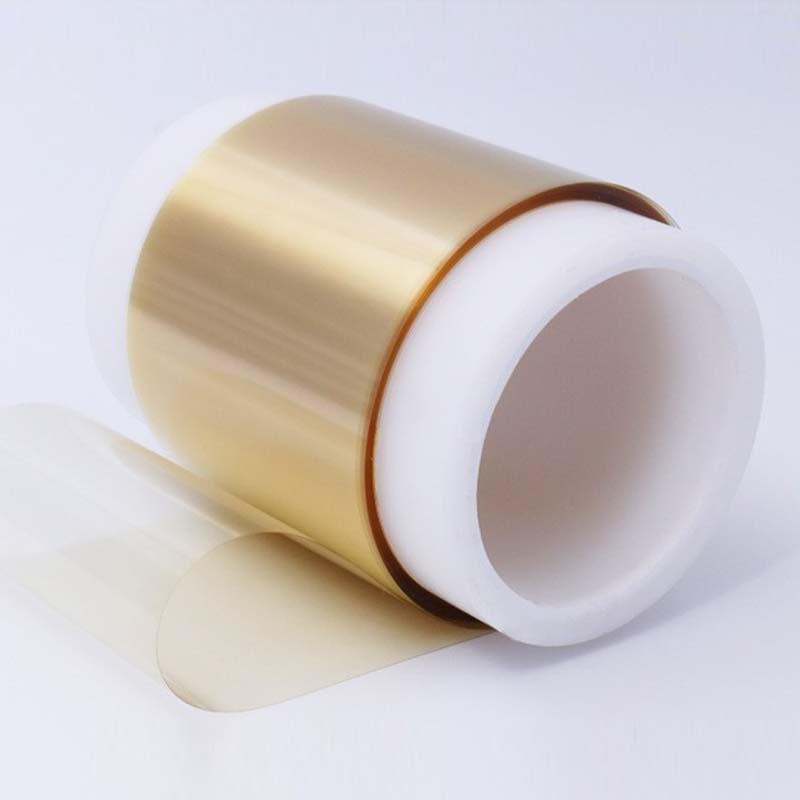

Polyetherimide (PEI) is a transparent amber-colored amorphous thermoplastic specialty engineering plastic. Its English name is Polyetherimide, and its abbreviation is PEI. PEI's molecular structure contains both aromatic amine functional groups and ether structures. The aromatic ring and imide ring give it a rigid and anti-creep characteristic and high temperature stability, while the ether bond makes it have the flexibility required for thermoplastic molding. The density of PEI is 1.27 g/cm3, its glass transition temperature is 215℃, and its heat deflection temperature is 198-208℃.
Product Specifications
|
Code
|
Color
|
Texture
|
(mm)Thickness
|
(mm)Width
|
|
DFPEI
|
Natural/Black
|
Polished/matte
matte/velvet
|
0.025~0.5
|
<1060
|
Customers can customize according to their requirements within the above range.
Physical Properties
| |
PROPERTY
|
Tes Method
|
Units
|
Value
|
|
PHYSICAL
|
Density
|
ISO 1183
|
g/cm³
|
1.27
|
|
WaterAbsorption(23℃/24hrs)
|
ISO 62
|
%
|
0.25
|
|
MECHANICAL
|
Tensile Strength
|
ISO 527-3
|
MD(MPa)
|
105
|
|
TD(MPa)
|
102
|
|
Elongation Ultimate
|
ISO 527-3
|
MD%
|
65
|
|
TD%
|
34
|
|
Tensile modulus
|
ISO 527-3
|
MD(MPa)
|
2796
|
|
TD(MPa)
|
2808
|
|
THERMAL
|
Shrinkage(200℃/30min)
|
ISO 11501
|
MD%
|
0.2
|
|
TD%
|
0.1
|
|
Glass Transition(Tg)
|
ISO 11357
|
℃
|
217
|
|
RelativeTemperaturelndex
|
UL746B
|
|
170
|
|
ELECTRICAL
|
Surface Resistivity
|
IEC 60093
|
9
|
10¹5
|
|
Volume Resistivity
|
IEC60093
|
|
10¹⁵
|
|
Dielectric Constant
|
IEC 60250
|
1MHz
|
3
|
|
Loss Tangent
|
IEC 60250
|
|
0.006
|
|
OPTICAL
|
Transmittance
|
ISO13468-2
|
%
|
85.6
|
Remarks: The above data is the test value of the laboratory, non-guaranteed value, for reference only.
Features
①Amorphous thermoplastic high temperature resistant film. (Can be used for a long time in the range of 160°C-180°C)
②Mechanical properties such as extremely high strength and modulus at elevated temperatures. Excellent dimensional stability. (low creep sensitivity, low and uniform coefficient of thermal expansion)
③Excellent insulating properties, stable dielectric constant (Dk) and low dissipation factor (Df) over a wide temperature and frequency range.Excellent flame retardancy and low smoke generation, in line with ABD, FAR and NBS requirements.
④Excellent chemical resistance to most oils, detergents and disinfectants. Can withstand a variety of disinfection methods.With visible light, infrared and microwave penetration.
Application Areas
The main application scenarios of PEI film: electronic and electrical industries with special requirements such as waterproof, dustproof and breathable, speaker diaphragm, high temperature supercapacitor, etc.
