SPECIFICATION
|
Name
|
Color
|
Texture
|
(mm)Thickness
|
(mm)Width
|
|

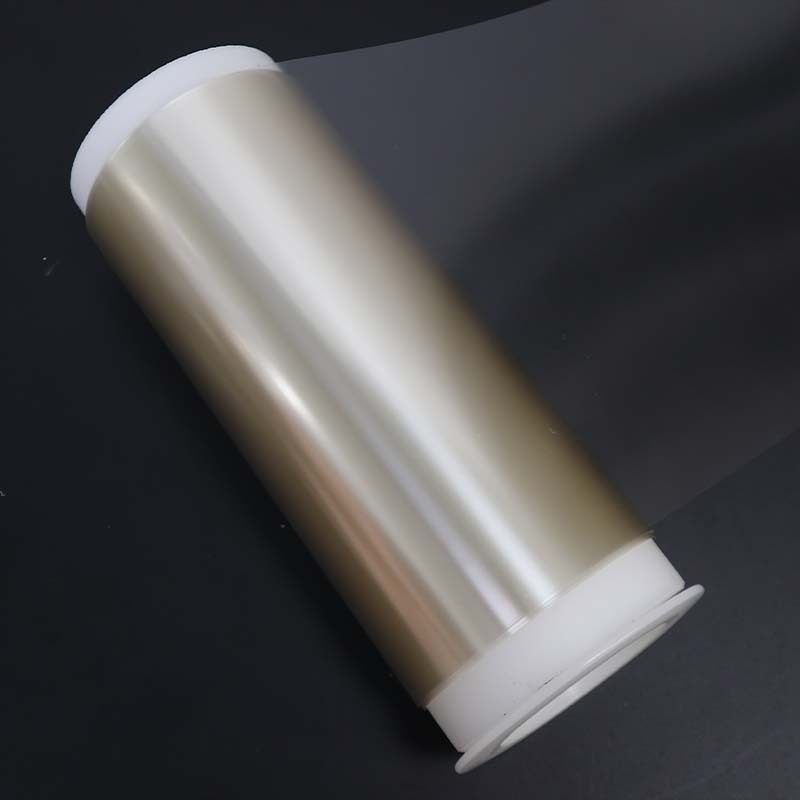

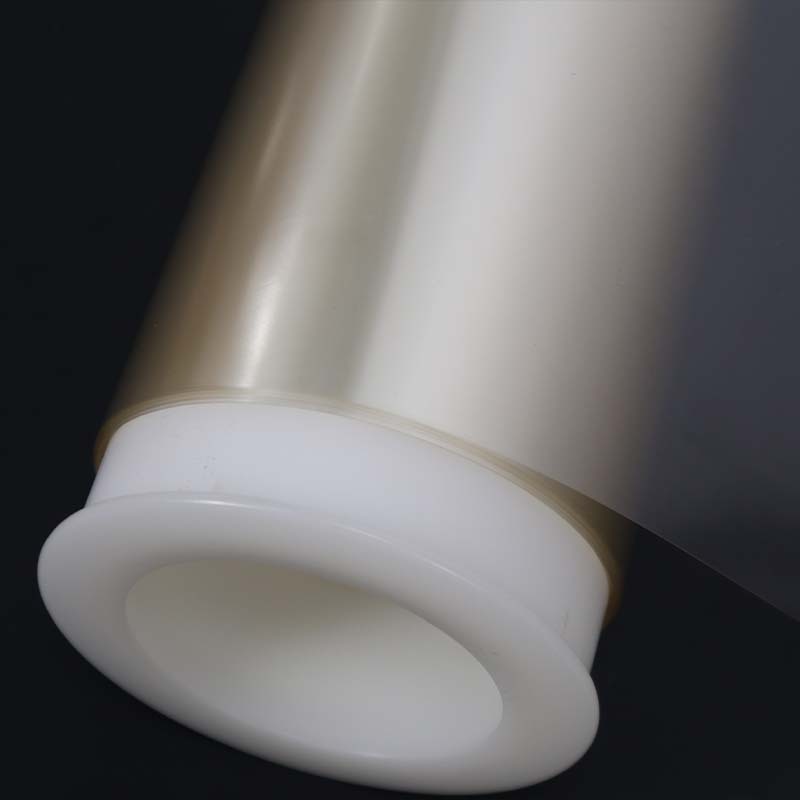

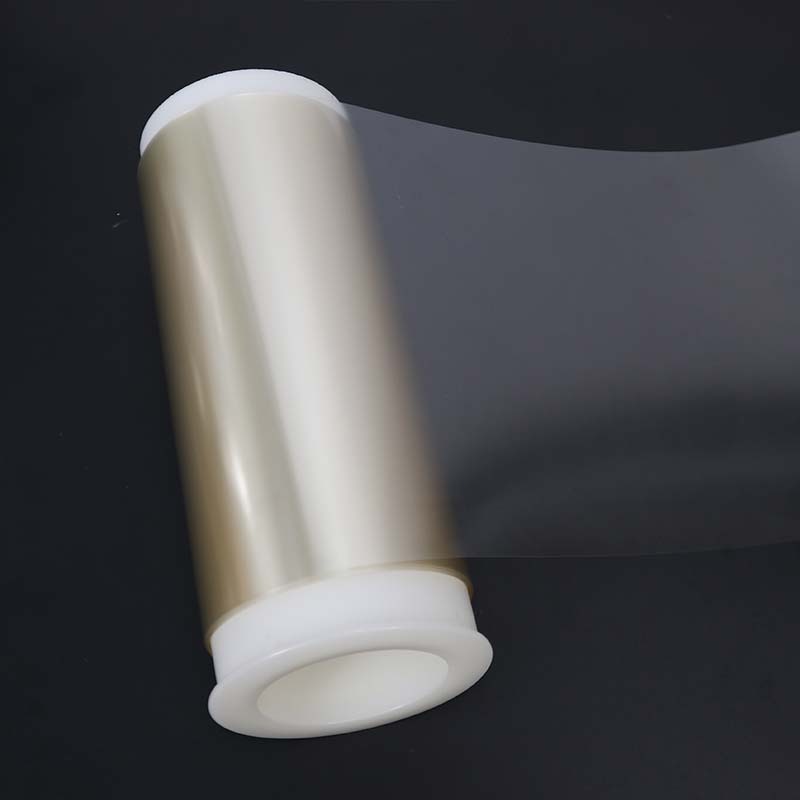

DFPPSU
|
Natrual
|
Polished/matte matte/velvet
|
0.025~0.1
|
≤950mm
|
|
0.1~0.5
|
≤ 1050mm
|
TYPICAL PROPERTY VALUES
|
|
PROPERTY
|
Test Method
|
Units
|
Value
|
|
PHYSICAL
|
Density
|
ISO 1183
|
g/cm3
|
1.29
|
|
Moisture Absorption （23℃/50%RH Eq. ）
|
ISO 62
|
%
|
0.6
|
|
MECHANICAL
|
Tensile Strength at yield
|
ISO 527-3
|
MD（ MPa）
|
68
|
|
TD（ MPa）
|
65
|
|
Elongation Ultimate
|
MD %
|
125
|
|
TD %
|
117
|
|
Tensile modulus
|
MD（ MPa）
|
2086
|
|
TD（ MPa）
|
2029
|
|
THERMAL
|
Shrinkage
（200℃/30min）
|
ISO 11501
|
MD %
|
0.5
|
|
TD %
|
0.2
|
|
Glass Transition (Tg)
|
ISO 11357
|
℃
|
220
|
|
Coefficient ofthermal expansion
|
ISO 11359(23-55℃)
|
ppm/K
|
55
|
|
Relative Temperature Index
|
UL746B
|
℃
|
180
|
|
ELECTRICAL
|
Surface Resistivity
|
IEC 60093
|
Ω
|
1015
|
|
Volume Resistivity
|
Ω·m
|
1013
|
|
Dielectric Strength
|
IEC60243-1（ 1mm ）
|
kV/mm
|
45
|
|
Dielectric Constant
|
IEC 60250
|
1MHz
|
3.7
|
|
Loss Tangent
|
1MHz
|
0.009
|
|
OPTICAL
|
Transmittance
|
ISO13468-2
|
%
|
85.5
|
Remarks: The above data is the test value of the laboratory, non-guaranteed value, for reference only. Add： 11th, 2nd Road, Xiaofengtian Industrial Park,
Wuzhuang, Luocun, Nanhai Foshan, Guangdong Province
