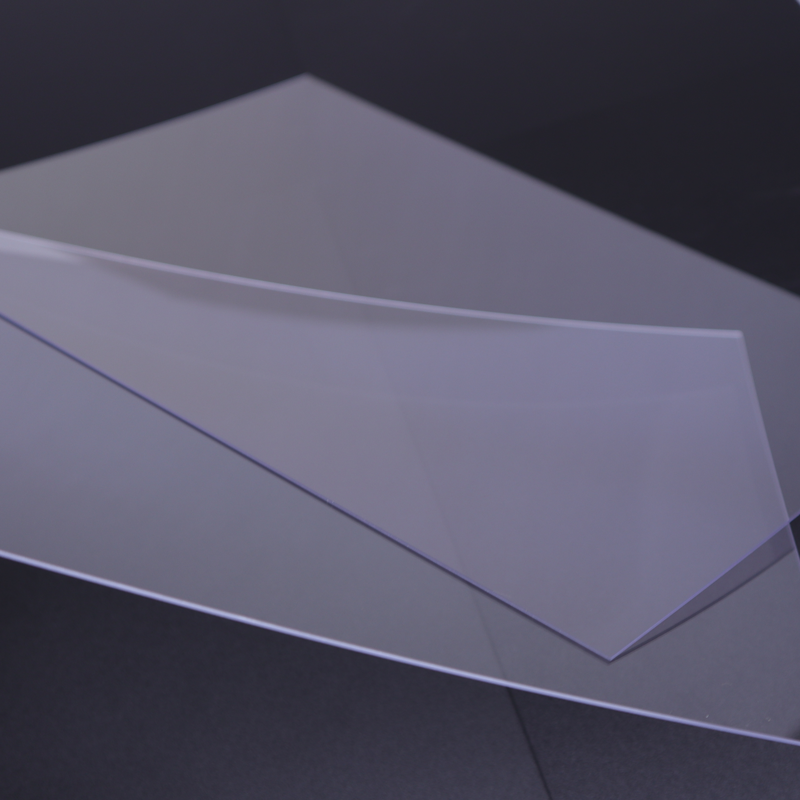

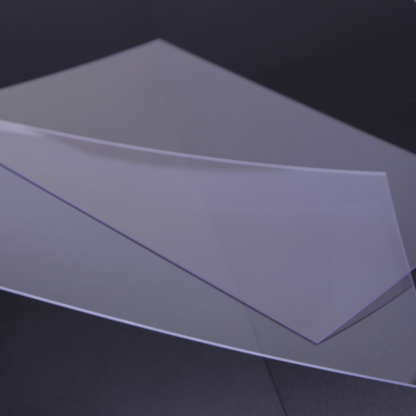

Printing PC Sheet polished/polished

 Code

 Color

 Texture

（mm）Thickness

（mm）Width

DFPC11

Natural

            Polished / Polished

0.100 ~ 4.000 ( 0.004” ~ 0.157” )

915 & 1220 ( 3’& 4’ )

 Thinkness Tolerances

d<0.5mm  ±10um

0.5≤d<1.2mm  ±15um

d≥1.2mm  ±25um

 Item

测试方法

Test Methods

单位Units

测试值Value

 PHYSICAL

Specific Gravity

ASTM D792

g/cm³

1.2

 Transmittance

ASTM D1003

%

≥89

Water Absorption Equilibrium, 24 HRS

ASTM D570

%

0.35

 MECHANICAL

 Tensile Strength

ASTM D882

Mpa

≥60

 Elongation Ultimate

ASTM D882

%

≥90

 THERMAL

 Vicat Softening Temperature

ASTM D1525

℃

135

Thermal Shrinkage @135℃

ASTM D1204

%

≤1

 ELECTRICAL

 Dielectric Strength @10mils

ASTM D149

KV/mm

≥30

 Volume Resistivity @25℃, 50%RH

ASTM D257

Ω·cm

>1x10¹⁷

 Surface Resistivity @25℃, 50%RH

ASTM D257

Ω

>1x10¹⁵

 FLAMMABILITY

 UL Flamability @≧20mils

UL 94

--

V-2

杂质点 Foreign matter

粒径Diameter

≤0.1mm

0.1<d≤0.25mm

0.25<d≤0.64mm

≥0.64mm

数量Amount

(in an area of 1m²)

Allowed

≤22

≤7

Not allowed
